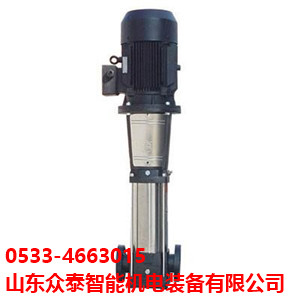

- CDL（F）立式多级离心泵 产品型号：CDL（F）立式多级离心泵
- 产品介绍
- 1、立式多级离心泵采用标准立式电机和快装式机械密封，更换非常方便。泵的过流部分均采用不锈钢（304\316）材料制成，可适用于轻度腐蚀性介质。
立式多级离心泵主要应用于高层建筑供水，也可应用于厂矿、企业给排水、水处理以及低压锅炉循环用水。
产品特点：
1、水力模型先进：效率高，性能范围广。
2、更少的运行、维修费用：采用优质机械密封，耐磨损、无泄漏、使用寿命长，故障率低，具有更少的运行维修费用。
3、独特部件、降低噪音：独特的水力部件设计，良好的过流性能，最大地减少流动噪音。
4、立式结构，占地面积小。
CDL（F）不锈钢立式多级离心泵型号意义：
CDL F 8-2
CDL – 轻型立式多级离心泵
F – 过流部件为不锈钢304或316
8 – 泵设计流量 （m3/h）
2 – 级数
型号
扬程(m)
流量(m3/h)
电机功率(KW)
转速(r/min)
CDL1-2
11.5
1
0.37
2900
CDL1-3
17
1
0.37
2900
CDL1-4
22.5
1
0.37
2900
CDL1-5
28
1
0.37
2900
CDL1-6
33.5
1
0.37
2900
CDL1-7
39
1
0.37
2900
CDL1-8
45
1
0.55
2900
CDL1-9
51
1
0.55
2900
CDL1-10
57
1
0.55
2900
CDL1-17
95
1
1.1
2900
CDL1-19
106
1
1.1
2900
CDL1-21
117
1
1.1
2900
CDL1-23
128
1
1.1
2900
CDL1-25
139
1
1.5
2900
CDL1-27
150
1
1.5
2900
CDL1-30
166
1
1.5
2900
CDL1-33
183
1
2.2
2900
CDL1-36
200
1
2.2
2900
CDL2-2
15
2
0.37
2900
CDL2-3
22
2
0.37
2900
CDL2-4
30
2
0.55
2900
CDL2-5
37
2
0.55
2900
CDL2-6
45
2
0.75
2900
CDL2-7
52
2
0.75
2900
CDL2-9
67
2
1.1
2900
CDL2-11
82
2
1.1
2900
CDL2-13
98
2
1.5
2900
CDL2-15
112
2
1.5
2900
CDL2-18
136
2
2.2
2900
CDL2-22
165
2
2.2
2900
CDL2-26
198
2
3.0
2900
CDL3-2
9
3
0.37
2900
CDL3-3
14
3
0.37
2900
CDL3-4
19
3
0.37
2900
CDL3-5
23
3
0.37
2900
CDL3-6
28
3
0.55
2900
CDL3-7
32
3
0.55
2900
CDL3-8
37
3
0.75
2900
CDL3-9
42
3
0.75
2900
CDL3-10
47
3
0.75
2900
CDL3-11
51
3
1.1
2900
CDL3-12
55
3
1.1
2900
CDL3-13
60
3
1.1
2900
CDL3-15
69
3
1.1
2900
CDL3-17
79
3
1.5
2900
CDL3-19
88
3
1.5
2900
CDL3-21
98
3
2.2
2900
CDL3-23
107
3
2.2
2900
CDL3-25
116
3
2.2
2900
CDL3-27
124
3
2.2
2900
CDL3-29
133
3
2.2
2900
CDL3-31
142
3
3
2900
CDL3-33
151
3
3
2900
CDL3-36
168
3
3
2900
CDL4-2
15
4
0.37
2900
CDL4-3
24
4
0.55
2900
CDL4-4
32
4
0.75
2900
CDL4-5
40
4
1.1
2900
CDL4-6
48
4
1.1
2900
CDL4-7
56
4
1.5
2900
CDL4-8
64
4
1.5
2900
CDL4-10
81
4
2.2
2900
CDL4-12
95
4
2.2
2900
CDL4-14
112
4
3
2900
CDL4-16
129
4
3
2900
CDL4-19
153
4
4
2900
CDL4-22
178
4
4
2900
CDL8-2/1
9
8
0.75
2900
CDL8-2
18
8
0.75
2900
CDL8-3
27
8
1.1
2900
CDL8-4
36
8
1.5
2900
CDL8-5
45
8
2.2
2900
CDL8-6
54
8
2.2
2900
CDL8-8
73
8
3.0
2900
CDL8-10
92
8
4.0
2900
CDL8-12
111
8
4.0
2900
CDL8-14
130
8
5.5
2900
CDL8-16
148
8
5.5
2900
CDL8-18
167
8
7.5
2900
CDL8-20
186
8
7.5
2900
CDL12-2
20
12
1.5
2900
CDL12-3
30
12
2.2
2900
CDL12-4
40
12
3
2900
CDL12-5
50
12
3
2900
CDL12-6
60
12
4
2900
CDL12-7
70
12
5.5
2900
CDL12-8
80
12
5.5
2900
CDL12-9
91
12
5.5
2900
CDL12-10
101
12
7.5
2900
CDL12-12
121
12
7.5
2900
CDL12-14
141
12
11
2900
CDL12-16
162
12
11
2900
CDL12-18
183
12
11
2900
CDL16-2
22
16
2.2
2900
CDL16-3
34
16
3.0
2900
CDL16-4
46
16
4.0
2900
CDL16-5
58
16
5.5
2900
CDL16-6
70
16
5.5
2900
CDL16-7
82
16
7.5
2900
CDL16-8
94
16
7.5
2900
CDL16-10
118
16
11
2900
CDL16-12
141
16
11
2900
CDL16-14
166
16
15
2900
CDL16-16
189
16
15
2900
CDL20-1
10
20
1.1
2900
CDL20-2
23
20
2.2
2900
CDL20-3
35
20
4.0
2900
CDL20-4
47
20
5.5
2900
CDL20-5
58
20
5.5
2900
CDL20-6
70
20
7.5
2900
CDL20-7
82
20
7.5
2900
CDL20-8
94
20
11
2900
CDL20-10
118
20
11
2900
CDL20-12
142
20
15
2900
CDL20-14
166
20
15
2900
CDL20-17
202
20
18.5
2900
CDL32-10-1
9
32
1.5
2900
CDL32-10
13
32
2.2
2900
CDL32-20-2
20
32
3.0
2900
CDL32-20
27
32
4.0
2900
CDL32-30-2
33
32
5.5
2900
CDL32-30
40
32
5.5
2900
CDL32-40-2
46
32
7.5
2900
CDL32-40
53
32
7.5
2900
CDL32-50-2
60
32
11
2900
CDL32-50
67
32
11
2900
CDL32-60-2
74
32
11
2900
CDL32-60
81
32
11
2900
CDL32-70-2
88
32
15
2900
CDL32-70
95
32
15
2900
CDL32-80-2
102
32
15
2900
CDL32-80
109
32
15
2900
CDL32-90-2
117
32
18.5
2900
CDL32-90
124
32
18.5
2900
CDL32-100-2
131
32
18.5
2900
CDL32-100
138
32
18.5
2900
CDL32-110-2
146
32
22
2900
CDL32-110
153
32
22
2900
CDL32-120-2
160
32
22
2900
CDL32-120
167
32
22
2900
CDL32-130-2
174
32
30
2900
CDL32-130
181
32
30
2900
CDL32-140-2
189
32
30
2900
CDL32-140
196
32
30
2900
CDL32-150-2
203
32
30
2900
CDL32-150
210
32
30
2900
CDL32-160-2
218
32
30
2900
CDL32-160
225
32
30
2900
CDL42-10-1
16
42
3.0
2900
CDL42-10
20
42
4.0
2900
CDL42-20-2
32
42
5.5
2900
CDL42-20
41
42
7.5
2900
CDL42-30-2
52
42
11
2900
CDL42-30
61
42
11
2900
CDL42-40-2
73
42
15
2900
CDL42-40
81
42
15
2900
CDL42-50-2
93
42
18.5
2900
CDL42-50
101
42
18.5
2900
CDL42-60-2
113
42
22
2900
CDL42-60
122
42
22
2900
CDL42-70-2
134
42
30
2900
CDL42-70
142
42
30
2900
CDL42-80-2
154
42
30
2900
CDL42-80
162
42
30
2900
CDL42-90-2
174
42
30
2900
CDL42-90
183
42
37
2900
CDL42-100-2
194
42
37
2900
CDL42-100
203
42
37
2900
CDL42-110-2
217
42
45
2900
CDL42-110
225
42
45
2900
CDL42-120-2
238
42
45
2900
CDL42-120
247
42
45
2900
CDL42-130-2
259
42
45
2900
CDL65-10-1
13
65
4.0
2900
CDL65-10
20
65
5.5
2900
CDL65-20-2
26
65
7.5
2900
CDL65-20-1
33
65
11
2900
CDL65-20
40
65
11
2900
CDL65-30-2
46
65
15
2900
CDL65-30-1
53
65
15
2900
CDL65-30
60
65
18.5
2900
CDL65-40-2
66
65
18.5
2900
CDL65-40-1
73
65
22
2900
CDL65-40
80
65
22
2900
CDL65-50-2
88
65
30
2900
CDL65-50-1
95
65
30
2900
CDL65-50
102
65
30
2900
CDL65-60-2
110
65
30
2900
CDL65-60-1
117
65
37
2900
CDL65-60
124
65
37
2900
CDL65-70-2
132
65
37
2900
CDL65-70-1
139
65
37
2900
CDL65-70
146
65
45
2900
CDL65-80-2
154
65
45
2900
CDL65-80-1
161
65
45
2900
CDL85-10-1
14
85
5.5
2900
CDL85-10
20
85
7.5
2900
CDL85-20-2
30
85
11
2900
CDL85-20
41
85
15
2900
CDL85-30-2
52
85
18.5
2900
CDL85-30
64
85
22
2900
CDL85-40-2
75
85
30
2900
CDL85-40
86
85
30
2900
CDL85-50-2
98
85
37
2900
CDL85-50
110
85
37
2900
CDL85-60-2
122
85
45
2900
CDL85-60
134
85
45
2900
CDL120-10
18.5
120
11
2950
CDL120-20-2
28.5
120
15
2950
CDL120-20-1
34.5
120
18.5
2950
CDL120-20
40
120
22
2950
CDL120-30-2
49
120
30
2950
CDL120-30-1
55.5
120
30
2950
CDL120-30
61
120
30
2950
CDL120-40-2
69
120
37
2950
CDL120-40-1
76
120
37
2950
CDL120-40
81
120
45
2950
CDL120-50-2
90
120
45
2950
CDL120-50-1
97
120
45
2950
CDL120-50
101.5
120
55
2950
CDL120-60-2
110
120
55
2950
CDL120-60-1
118
120
55
2950
CDL120-60
123
120
75
2950
CDL120-70-2
130
120
75
2950
CDL120-70-1
137.5
120
75
2950
CDL120-70
145
120
75
2950
CDL150-10-1
12.5
150
11
2950
CDL150-10
18.5
150
15
2950
CDL150-20-2
27.5
150
18.5
2950
CDL150-20-1
35
150
22
2950
CDL150-20
40
150
30
2950
CDL150-30-2
49
150
30
2950
CDL150-30-1
56
150
37
2950
CDL150-30
63
150
37
2950
CDL150-40-2
70.5
150
45
2950
CDL150-40-1
77
150
45
2950
CDL150-40
84
150
50
2950
CDL150-50-2
92
150
55
2950
CDL150-50-1
99
150
75
2950
CDL150-50
106.5
150
75
2950
CDL150-60-2
112
150
75
2950
CDL150-60-1
120.5
150
75
2950
CDL150-60
130
150
75
2950
CDL200-10-B
20
200
18.5
2950
CDL200-10-A
24
200
22
2950
CDL200-10
34
200
30
2950
CDL200-20-2B
41
200
37
2950
CDL200-20-2A
49
200
45
2950
CDL200-20-A
59
200
55
2950
CDL200-20
69
200
55
2950
CDL200-30-2B
75
200
75
2950
CDL200-30-A-B
79
200
75
2950
CDL200-30-2A
84
200
75
2950
CDL200-30-B
89
200
75
2950
CDL200-30-A
93
200
75
2950
CDL200-30
103
200
90
2950
DL200-40-2B
110
200
90
2950
CDL200-40-2A
118
200
110
2950
CDL200-40-A
128
200
110
2950
CDL200-40
138
200
110
2950
- 下一篇：H型立式斜流泵
